Graphite Paragon's zero-click iMessage bug and how Apple patched it

⚠️ Disclaimer:
I’m a cybersecurity student, this is a non-professional, personal blog post. My analysis may contain errors or oversights I’m still learning. If you spot any mistakes or have suggestions, please don’t hesitate to reach out!

1. Citizen Lab breaks the story

#

On 12 June 2025, Citizen Lab published "First Forensic Confirmation of Paragon’s iOS Mercenary Spyware".

Their report links Paragon’s Graphite spyware to a zero-click iMessage payload observed on several European journalists’ phones.

Core facts:

• Victim received an Apple notification in April 2025.
• Delivery vector: Paragon’s Graphite spyware used a sophisticated iMessage zero-click attack

Citizen Lab’s timeline ends on 11 June 2025 UTC, when Apple ships iOS 18.3.1 and credits CVE-2025-43200 as the fix.

2. CVE-2025-43200 & Apple’s one-liner advisory

#

In Apple’s security note for iOS 18.3.1 we can read:

Impact: A logic issue existed when processing a maliciously crafted photo or video shared via an iCloud Link. Apple is aware of a report that this issue may have been exploited in an extremely sophisticated attack against specific targeted individuals. Description: This issue was addressed with improved checks.
CVE-2025-43200 - Apple.

No file paths, no clue which binary changed. That’s where patch diffing comes in!

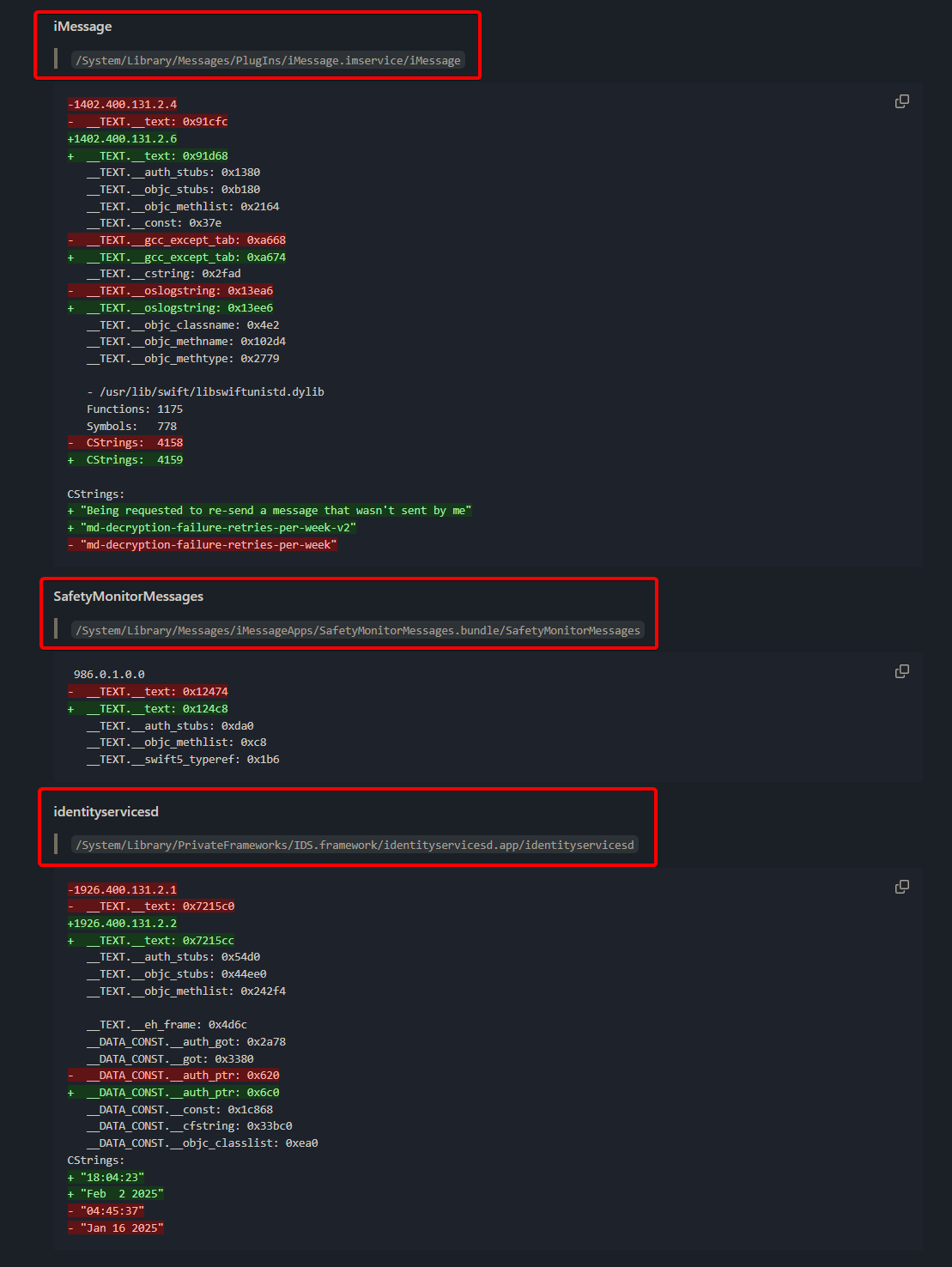

3. Checking blacktop/ipsw-diffs on 18.3 (22D63) vs 18.3.1 (22D72)

#

Blacktop’s automated diff shows 10 Mach-Os rebuilt in the hot-fix, but only three are in the Messages stack highlighted below:

• iMessage (System/Library/Messages/PlugIns/iMessage.imservice/iMessage)
• SafetyMonitor (System/Library/Messages/iMessageApps/SafetyMonitorMessages.bundle/SafetyMonitorMessages)
• identityservicesd (System/Library/PrivateFrameworks/IDS.framework/identityservicesd.app/identityservicesd)

4. Getting inside 18.3 (22D63) and 18.3.1 (22D72)

#

As iOS 18, Apple added dmg.aea which make the diffing different than before, if like me you were used to basic dmg! That’s why I will provide a micro-guide for this. If you’re only interested in the technical analysis you can skip to step 5.

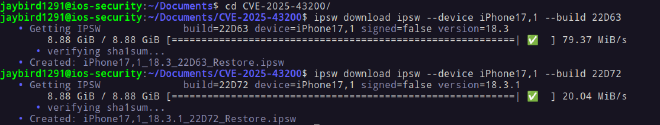

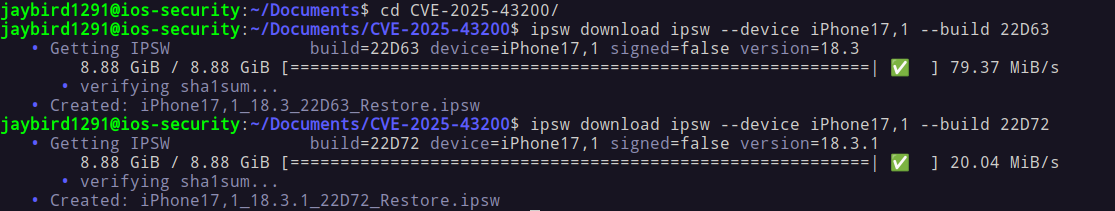

1. Download the two iOS versions

ipsw download ipsw --device iPhone17,1 --build 22D63
ipsw download ipsw --device iPhone17,1 --build 22D72

2. Extract filesystem

ipsw extract --dmg fs  iPhone17,1_18.3_22D63_Restore.ipsw
ipsw extract --dmg fs  iPhone17,1_18.3.1_22D72_Restore.ipsw

3. Extract fcs-key and the dmg

ipsw extract --fcs-key iPhone17,1_18.3_22D63_Restore.ipsw

ipsw fw aea --pem '044-59182-075.dmg.aea.pem' '044-59515-074.dmg.aea' --output extracted/
# do this for the other one too

4. Mount

ipsw mount fs --pem-db extracted/fcs-keys.json ../iPhone17,1_18.3_22D63_Restore.ipsw

If like me this doesn’t work for any reasons:

sudo apfs-fuse -o allow_other,uid=1001,gid=1001 extracted/044-59515-074.dmg /mnt/ios_old

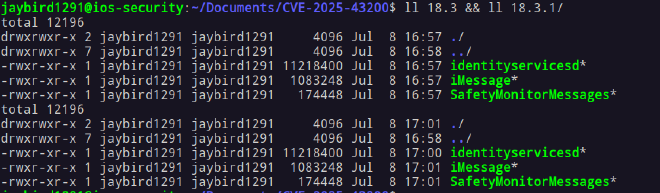

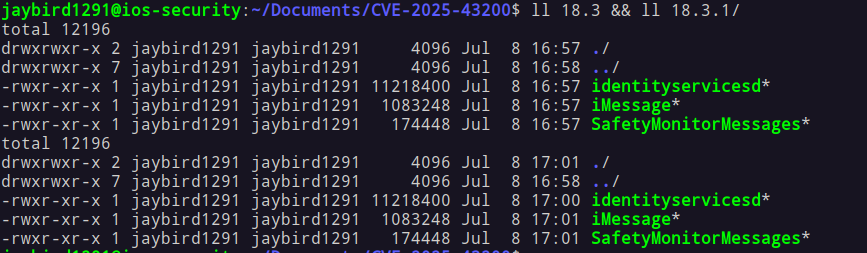

5. Copy needed files

cp System/Library/PrivateFrameworks/IDS.framework/identityservicesd.app/identityservicesd ~/Documents/CVE-2025-43200/18.3.1/

cp System/Library/Messages/PlugIns/iMessage.imservice/iMessage ~/Documents/CVE-2025-43200/18.3.1/

cp System/Library/Messages/iMessageApps/SafetyMonitorMessages.bundle/SafetyMonitorMessages ~/Documents/CVE-2025-43200/18.3.1/

5. Diffs inside iMessage.imservice 18.3 (22D63) and 18.3.1 (22D72)

#

First of all here’s the similarity:

radiff2 -s 18.3/iMessage 18.3.1/iMessage
similarity: 0.977
distance: 49654

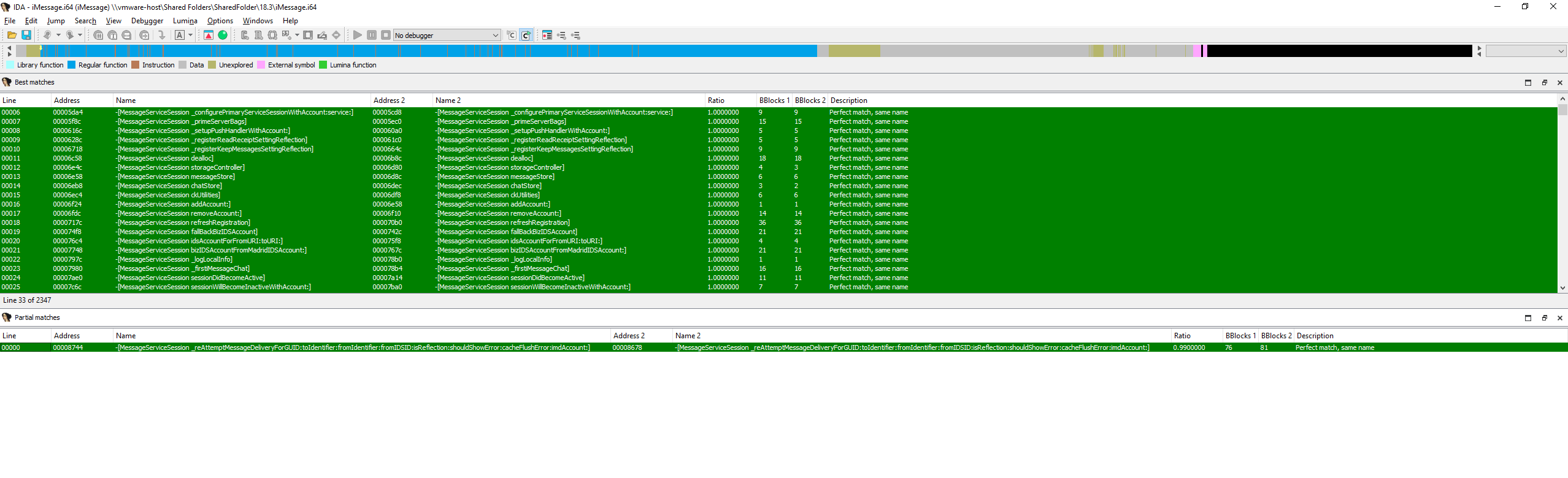

Then we can dig deeper in the diff with IDA Pro and Diaphora script:

We can see a partial match for -[MessageServiceSession _reAttemptMessageDeliveryForGUID: …]

With a notable new log "Being requested to re-send a message that wasn't sent by me"

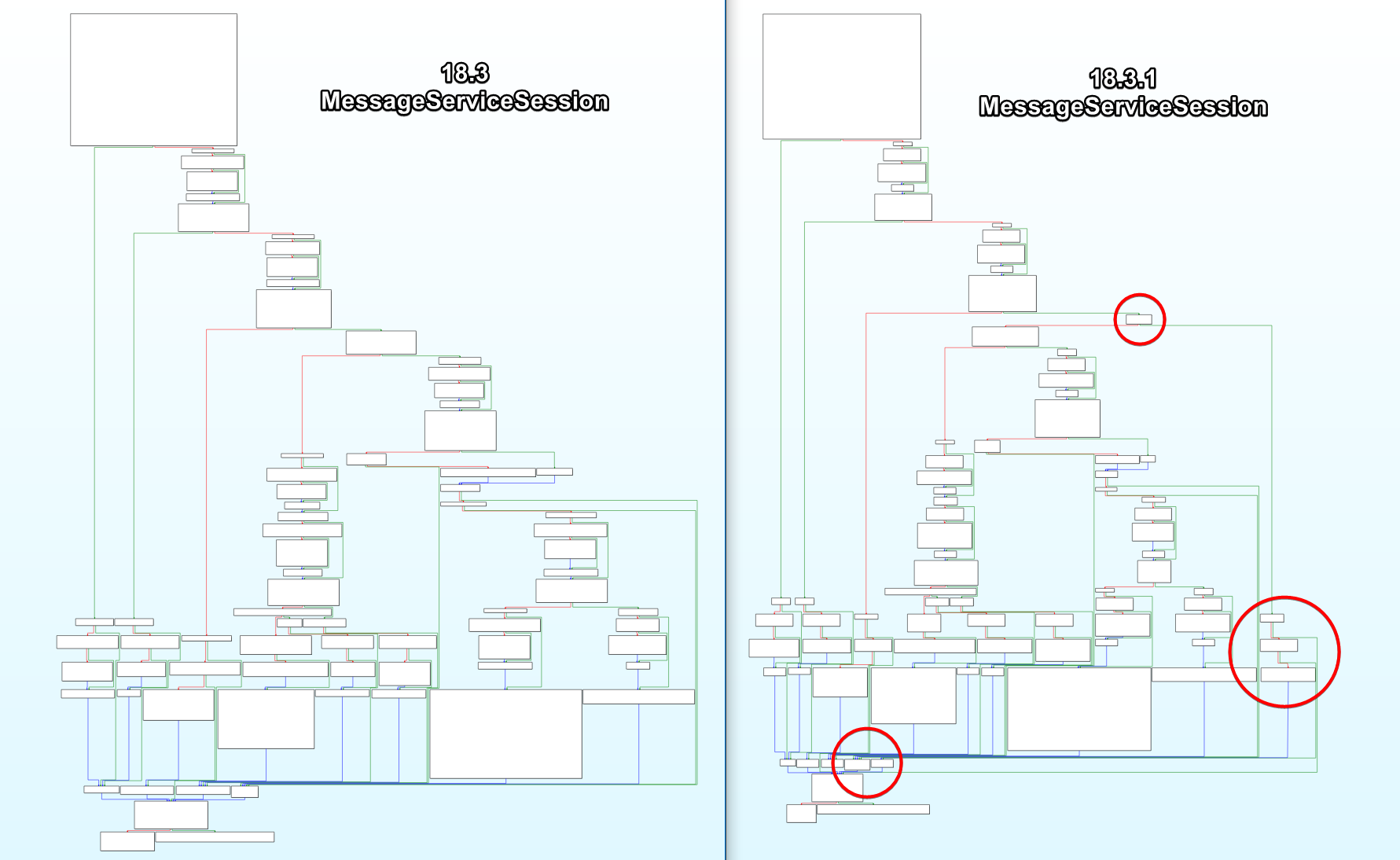

Using Graph view we can clearly see the new checking:

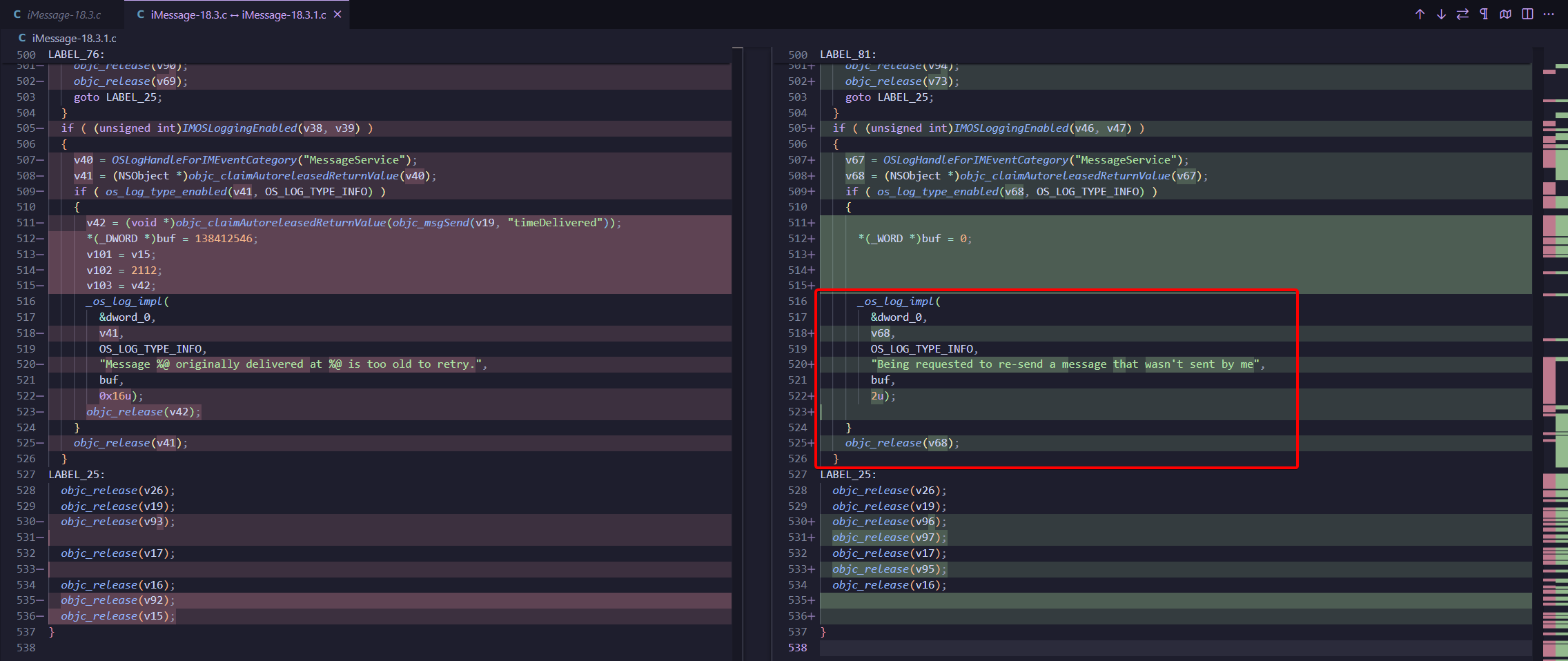

Here’s the 2 important changes:

1. New authorship gate that stops the reflection primitive:

//  AFTER 18.3.1 - NEW blocks resend of foreign messages
if (![message isFromMe]) {                       // message authored by someone else
    os_log_info(MessageServiceLog,
                "Being requested to re-send a message that wasn't sent by me");
    return;                                      // bail = exploit dies
}

Why? - We can assume that Paragon’s zero-click chain forged a “resend” control frame that pointed to a GUID in the victim’s chat DB (where is_from_me == 0). The single guard above rejects that request.

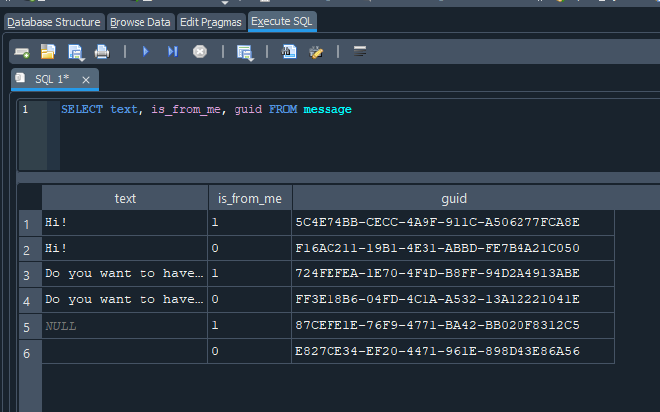

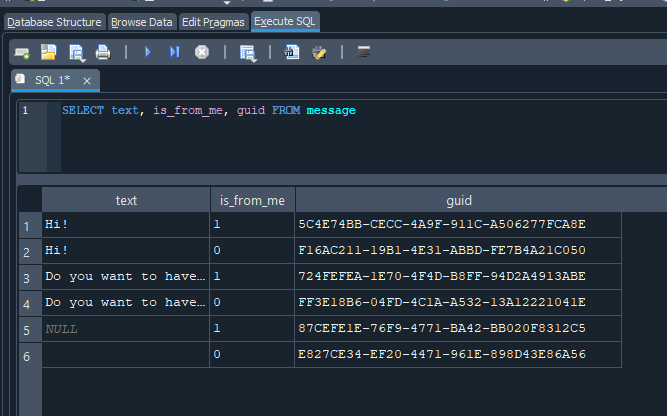

You can see these informations in the SMS.db:

2. Age-limit test pulled forward, no retries for stale messages

// BEFORE 18.3 - only skipped retries if the msg was still fresh (logic inverted)
if (timeSinceDelivered <= [self _messageRetryTimeout]) {   // !v37
    … proceed toward retry …
}

// AFTER 18.3.1 – bail out immediately when message is too old
if (timeSinceDelivered > [self _messageRetryTimeout]) {    // v37
    os_log_info(MessageServiceLog,
                "Message %@ originally delivered at %@ is too old to retry.",
                guid, deliveredDate);
    return;                                                // no resend
}

Why? - Apple tightened the resend window so attackers can’t keep hammering the same GUID months later.

Putting the pieces together:

1. Author check closes the core logic bug exploited by CVE-2025-43200.
2. Tighter age check reduces the replay window (defence-in-depth).

CVE-2025-43200 is a one-line logic patch:
“Only retry messages you actually wrote.”
The exploit succeeded because that obvious invariant was never enforced in the resend helper. Apple’s fix consists of:

1. if (!msg.isFromMe) return;
2. An os_log statement for triage.

18.3 (vulnerable)          18.3.1 (patched)
┌───────────────────┐      ┌────────────────────────────────┐
│ … look-ups …      │      │ … same …                       │
│ age-limit check   │      │ age-limit check (unchanged)    │
│ ──────────────────│      │────────────────────────────────│
│ NO author check   │      │ if (!message.isFromMe) {       │ ◄─ NEW
│ retry logic       │      │     log "...not sent by me..." |
└───────────────────┘      │     return;                    │
                           │ }                              │
                           │ retry logic (unchanged)        │
                           └────────────────────────────────┘

6. How this maps to CVE-2025-43200

#

The attacker:

1. Injected or replayed a specially-crafted iMessage “resend” request that points to an existing GUID in the victim’s local SQLite chat DB.
2. Because 18.3 lacked the isFromMe test, the helper method _reAttemptMessageDeliveryForGUID:… happily burned a retry credit and re-sent the foreign message (or its attachment) to the attacker-controlled handle.

Patch 18.3.1 closes that hole by insisting the GUID’s isFromMe bit is true. The message must originate from the local user. Any forged request that references someone-else’s message now trips the new log entry and bails early.

7. Attack vector - a plausible reconstruction

#

So far I haven’t found a compelling, end-to-end scenario that shows how CVE-2025-43200 fits into the cases documented by Citizen Lab. If you have alternative ideas-or artefacts I’ve missed-please get in touch; I’d be keen to investigate further.

My first hypothesis was that the bug might provide a stealthy exfiltration channel. On closer inspection that seems unlikely: the resend primitive can forward only those attachments that already live inside the Messages sandbox. It would not, by itself, let an attacker pull arbitrary data such as Signal or WhatsApp databases.

8. Forensic thoughts

#

Since I don’t have the CitizenLab compromised iPhones data everything here is hypothesis or purely logical deductions.

1. Unified log queries that surface CVE-2025-43200 activity:

Tip: unified logs roll after ~7 days on-device; always pull a full sysdiagnose immediately.

2. Chat database (sms.db) artefacts:

/*  Possible reflection duplicates: same GUID appears as both inbound (is_from_me = 0)
    and outbound (is_from_me = 1) within a short window                */
SELECT guid, date, is_from_me, text
FROM message
WHERE guid IN (
    SELECT guid FROM message WHERE is_from_me = 0
)
ORDER BY date ASC;

• A duplicate GUID flipping from is_from_me = 0 ➜ 1 without user action strongly suggests the resend primitive was abused.
• Cross-reference the GUID with the attachments table.

3. IDS & Message-delivery traces:

• Location (rooted dump or iOS Full Filesystem): /private/var/mobile/Library/Logs/CrashReporter/DiagnosticLogs/ids.*
• Grep for:
  • "resend-request"
  • "guid" values that also appear in sms.db duplicates
  • "handleID" matching unknown email/phone numbers

These plaintext IDS control-frames often survive in the diagnostic logs even when the main unified log has rolled.
